Tube Sheet Flange
What is Tube Sheet Flange?

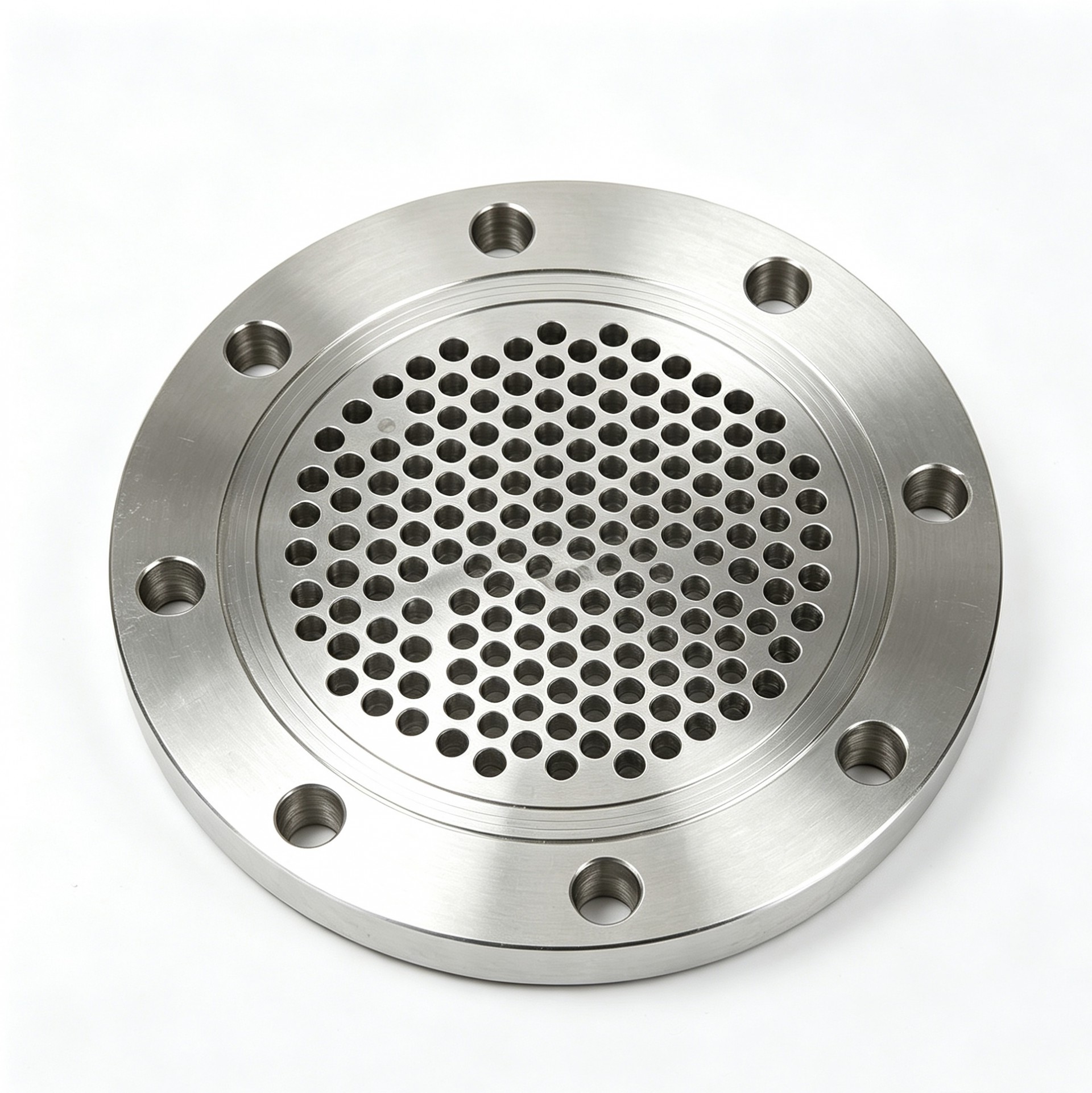

A precision‑drilled tube‑sheet flange used for heat‑exchanger and shell‑and‑tube equipment, precisely machined with dense tube holes for tube bundle mounting under high‑pressure & corrosive working conditions.
Supply Scope
| Product | Outer Diameter | Standard | Materials |
| Tube sheet Flange | 21.3-2032mm DN15-DN2000 1/2"-80" | ASME B16.5/B16.47/ B16.36/B16.48 JIS B2220 DIN 2501-2673 EN 1092-1 / EN 1759-1 BS 4504/BS 3293 AS 2129/AS 4087 SABS 1123 UNI 2277/2278 AWWA C207 API 6A GOST 33259/10280/10281 ... | Austenitic: F304/L, F316/L, F316Ti... Duplex Steel: F51/2205/S32205, F53/2507/S32750... Nickel Alloy: 600/800/C Series... Alloy 188/L-605/6B... |
How to Request a Quotation
Provide material grade, standard,overall dimension, tube hole specification, quantity, drawing attachments, testing requirements and . Use the online inquiry form for a project-specific offer.
